Original Raspberry Pi 3 Model B+ Demo Board RPI3 Development Module Kit(Can buy separately)

Regular price R 653.00 R 653.00 Sale

Package 1 include: Raspberry 5MP camera with 15cm FPC cable only
Package 2 include: Raspberry Pi 3 Model B module only
Package 3 include: Raspberry Pi 3 Model B module + ABS Case+Cooling Fans+ 3x Heat Sink + Power Supply with Switch Cable +16GB SD Card
Package 4 include: 3.5" LCD Touch Screen+ Acrylic Case +Stylus +3x Heatsink only (NOT included RPI board, please drive the LCD before use)
Package 5 include: 32GB SD Card only( Class 10)
Package 6 include: Raspberry Pi 3 Model B module + ABS Case+ 3x Heat Sink + Power Supply with Switch Cable +16GB SD Card
Package 7 include: Raspberry Pi 3 Model B module + ABS Case+ 3x Heat Sink + Power Supply with Switch Cable

*** The power supply have US/EU/AU/UK plug for option, we will send the one as your local need

*** 3.5 Inch 320 x 480 TFT LCD Display Touch Screen Board, please install the drive before use

How to driver the LCD:
***Method A: Install our configed image OS
Raspbian OS: http://en.kedei.net/raspberry/v6_1/rpi_35_v6_1_2_3_stretch_kernel_4_13_16.rar
Ubuntu mate : http://en.kedei.net/raspberry/v6_1/rpi_v6_1-2-3_ubuntu-mate-15-kedei.rar

***Method B: install our driver at yourself image (raspbian or ubuntu mate)
1, need your pi connected with internet by WIFI or Network cable
if no internet. the touch will not work
2,download the driver from here http://en.kedei.net/raspberry/v6_1/LCD_show_v6_1_3.tar.gz
3, copy it to your pi , On the LXTerminal ,enter
tar -xzvf LCD_show_v6_1_3.tar.gz
4, On the LXTerminal ,enter
cd LCD_show_v6_1_3
sudo ./LCD35_v

The LCD will reboot then will work

For Raspberry Pi 3
CPU: 64 Bit CPU
RAM: 1GB
micro-controller single board computer on the planet:
MPN: Raspberry Pi 3 Model B
USB Ports: 4
Processor Speed: 1200 Mhz
Wifi: Bluetooth

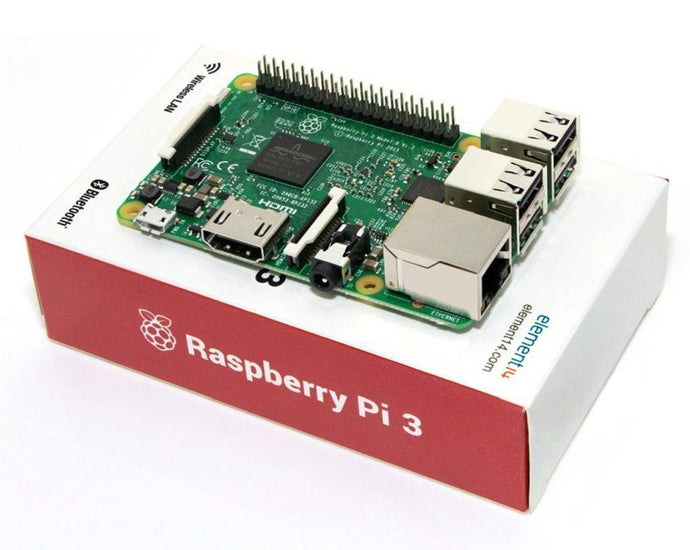

Now get ready for the hottest micro-controller single board computer on the planet: The Raspberry Pi 3 Model B.

The Raspberry Pi 3 Model B is the third generation Raspberry Pi. This powerful credit-card sized single board computer can be used for many applications and supersedes the original Raspberry Pi Model B+ and Raspberry Pi 2 Model B.

While maintaining the popular board format,the Raspberry Pi 3 Model B brings you a more powerful processor, 10 times faster than the first generation Raspberry Pi.Additionally it features WiFi and Bluetooth Low Energy capabilities to enhance the functionality and the ability to power more powerful devices over the USB ports.

Compared to the Raspberry Pi 2 it has:
A 1.2GHz 64-bit quad-core ARMv8 CPU
802.11n Wireless LAN
Bluetooth 4.0
Bluetooth Low Energy (BLE)
Like the Pi 2, it also has:
4 USB ports
40 GPIO pins
Full HDMI port
Ethernet port
Combined 3.5mm audio jack and composite video
Camera interface (CSI)
Display interface (DSI)
Micro SD card slot (now push-pull rather than push-push)
VideoCore IV 3D graphics core
Raspberry Pi 3 - Model B Technical Specification
Broadcom BCM2387 chip set
1.2GHz Quad-Core ARM Cortex-A53
802.11 bgn Wireless LAN and Bluetooth 4.1 (Bluetooth Classic and LE)
1GB RAM
64 Bit CPU
4 x USB ports
4 pole Stereo output and Composite video port
Full size HDMI
10/100 BaseT Ethernet socketbr
CSI camera port for connecting the Raspberry Pi camera
DSI display port for connecting the Raspberry Pi touch screen display
Micro SD port for loading your operating system and storing data
Micro USB power source
Raspberry Pi 3 - Model B Features
Now 10x Faster - Broadcom BCM2387 ARM Cortex-A53 Quad Core Processor powered Single Board Computer running at 1.2GHz!
1GB RAM so you can now run bigger and more powerful applications
Fully HAT compatible
40pin extended GPIO to enhance your real world projects.
Connect a Raspberry Pi camera and touch screen display (each sold separately)
Stream and watch Hi-definition video output at 1080
Micro SD slot for storing information and loading your operating systems.
10/100 BaseT Ethernet socket to quickly connect the Raspberry Pi to the Internet
